Description

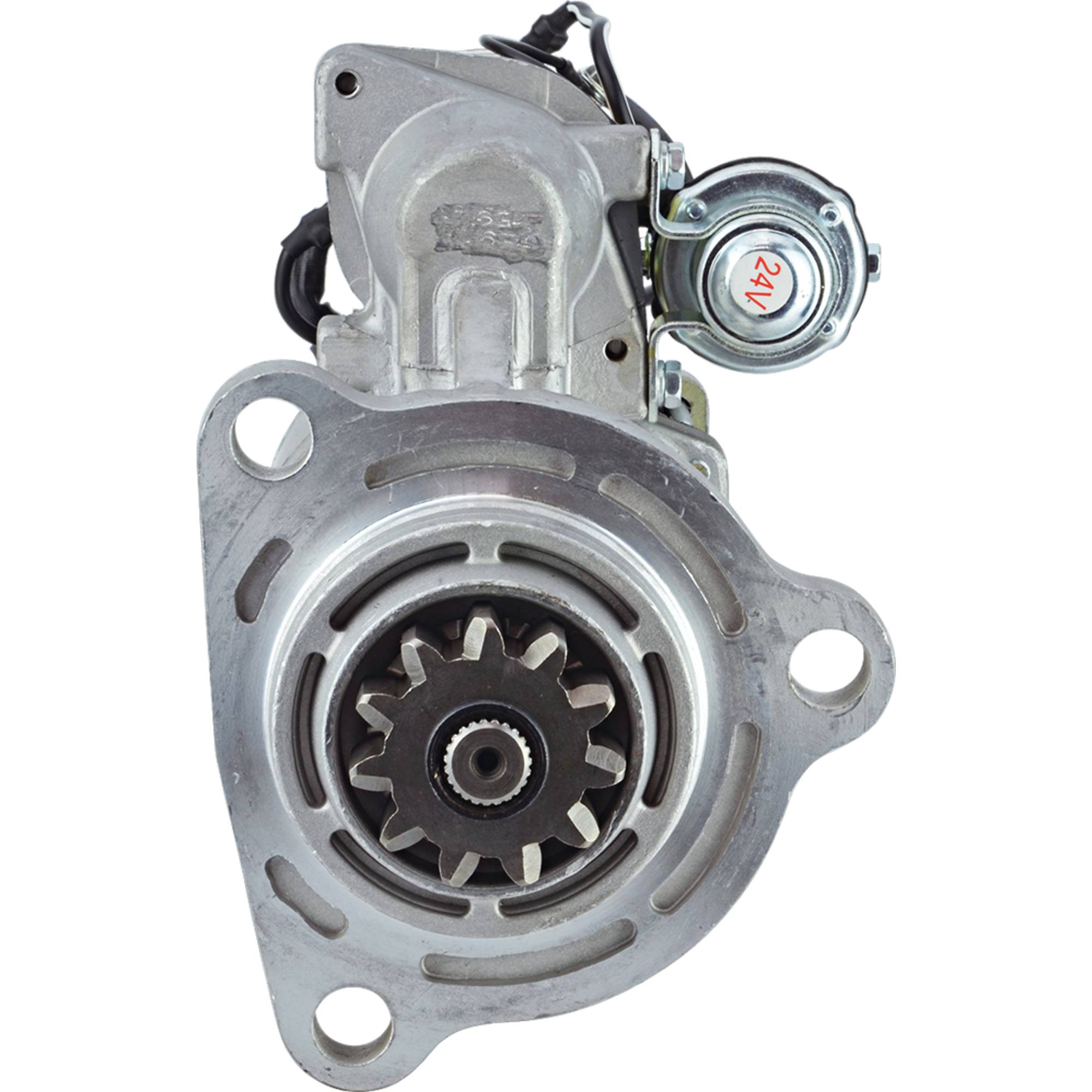

| Brand NEW CUMMINSISX / ISM ENGINES DELCO 39MT STARTER From DB Electrical |
| Applications: | |||||
| CUMMINS ISX / ISM ENGINES DELCO 39MT STARTER |
| Specifications: | |
| Type: | PLGR |
| Voltage: | 24 Volts |
| kW: | 8.3 kW |
| Rotation: | CW |
| Teeth/Splines: | 11 Teeth/Splines |
| Pinion/Splines OD: | 55.5mm / 2.185in |
| DE Housing Number: | 371-12205 |
| Mounting Hole 1: | 16mm ID - Unthreaded |
| Mounting Hole 2: | 16mm ID - Unthreaded |
| Mounting Hole 3: | 16mm ID - Unthreaded |
| New or Remanufactured: | New |
| Approximate Weight: | 32.3lbs / 14.68 kg |
| Notes: | Includes Control Relay, Solenoid Positioned at 278° This 39MTStarter Can Be Used to Replace Older Delco Starters 10478952 1047898810478990 10479100 10479114 10479168 10479308 1990378 1990460 1993941(Lester 6370 6378 6538 6684 Others (42MT's - Depending on SwitchPosition). Delco Remy's Integral Magnetic Switch (IMS) AttachesDirectly to Each MxT (38MT or 39MT) Starter Ensuring a Far More Robustand Reliable Circuit for Starting the Engine. This Unit May or May NotHave the Delco IMS Installed Originally, But Many are Supplied WithThis Switch on Replacement. |
| Replaces these part numbers: | |
| LESTER | 6852, 6853 |
| DELCO | 10461756, 19011509, 19011523, 8200032, 8200039, 8300016 |
| RCP | ST-6853 |
| WILSON | 91-01-4637 |
Warranty
All of our products are covered by our one year warranty from date of purchase. If you have a problem, we will take every step to assist you.
