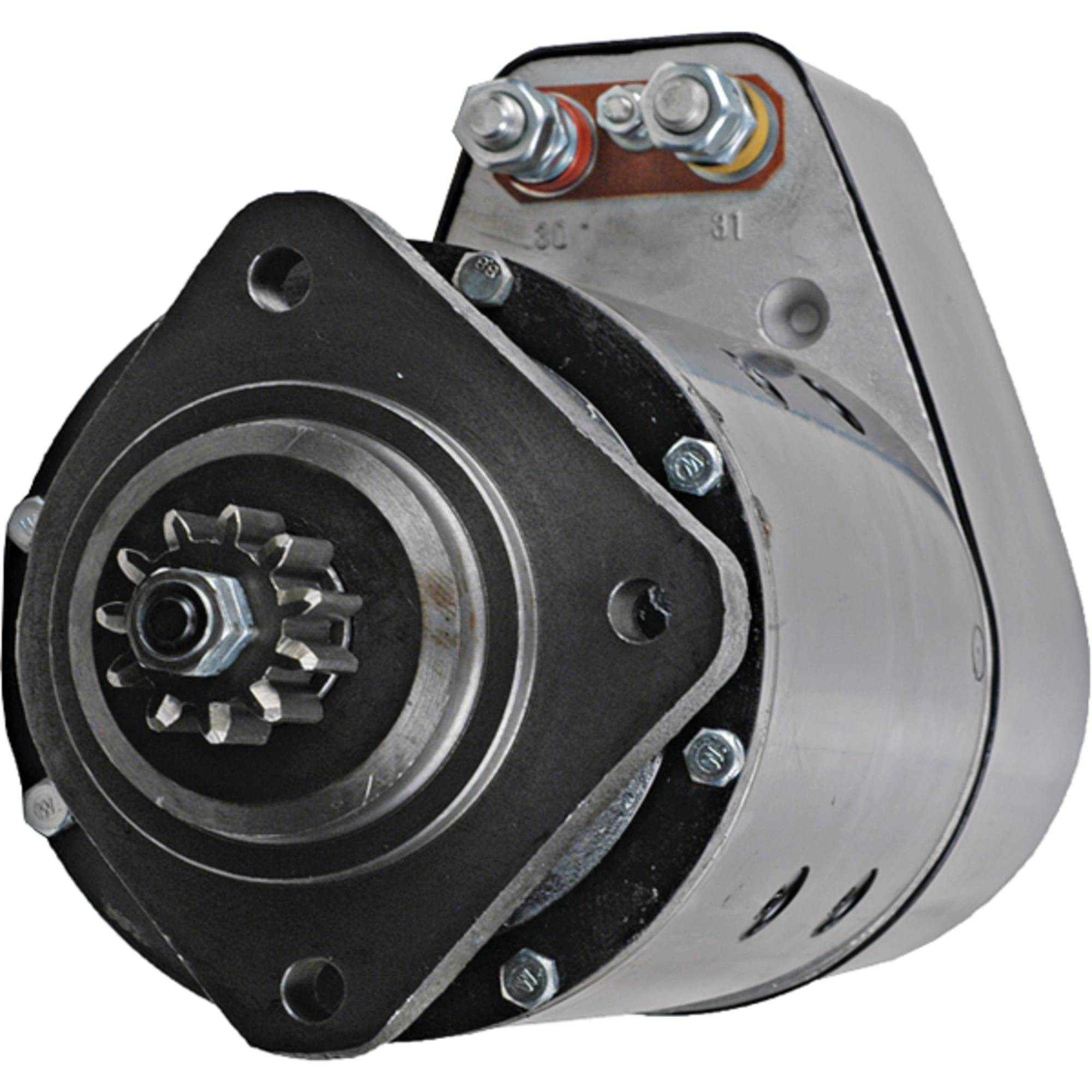

Starter for Bosch Deutz KHD F10L413, F12L413 Engines & Marine 0-001-510-014

# 410-24088
Free Shipping on orders over $50
1 Year Warranty on all products
30 Day Returns for a full refund or replacement
Only $663.84
Retail $1,430.28
Save 54%

If you're having any issues at all with finding, buying, or receiving your part, please contact us.

Description
New Aftermarket Part From Total Power Parts

Applications:
MAKE TYPE MODEL YEAR ENGINE
DEUTZEngines - MarineVarious Models1970F10L413 (14.1L - 14131cc)
DEUTZEngines - MarineVarious Models1970F12L413 (19.1L - 19144cc)
DEUTZEngines - MarineVarious Models1971F10L413 (14.1L - 14131cc)
DEUTZEngines - MarineVarious Models1971F12L413 (19.1L - 19144cc)
DEUTZEngines - MarineVarious Models1972F10L413 (14.1L - 14131cc)
DEUTZEngines - MarineVarious Models1972F12L413 (19.1L - 19144cc)
DEUTZEngines - MarineVarious Models1973F10L413 (14.1L - 14131cc)
DEUTZEngines - MarineVarious Models1973F12L413 (19.1L - 19144cc)
DEUTZEngines - MarineVarious Models1974F10L413 (14.1L - 14131cc)
DEUTZEngines - MarineVarious Models1974F12L413 (19.1L - 19144cc)
DEUTZEngines - MarineVarious Models1975F10L413 (14.1L - 14131cc)
DEUTZEngines - MarineVarious Models1975F12L413 (19.1L - 19144cc)
DEUTZEngines - MarineVarious Models1976F12L413 (19.1L - 19144cc)
DEUTZEngines - MarineVarious Models1977F12L413 (19.1L - 19144cc)
DEUTZEngines - MarineVarious Models1978F12L413 (19.1L - 19144cc)
DEUTZEngines - MarineVarious Models1979F12L413 (19.1L - 19144cc)
DEUTZEngines - MarineVarious Models1980F12L413 (19.1L - 19144cc)
DEUTZEngines - MarineVarious Models1981F12L413 (19.1L - 19144cc)
DEUTZEngines - MarineVarious Models1982F12L413 (19.1L - 19144cc)
DEUTZEngines - MarineVarious Models1983F12L413 (19.1L - 19144cc)
DEUTZEngines - MarineVarious Models1984F12L413 (19.1L - 19144cc)
DEUTZEngines - MarineVarious Models1985F12L413 (19.1L - 19144cc)
DEUTZEngines - MarineVarious Models1986F12L413 (19.1L - 19144cc)
DEUTZEngines - MarineVarious Models1987F12L413 (19.1L - 19144cc)
DEUTZEngines - MarineVarious Models1988F12L413 (19.1L - 19144cc)
DEUTZEngines - MarineVarious ModelsAllF12L513 (20.0L - 20074cc)

Specifications:
Unit TypeStarter
Voltage24
RotationCW
Teeth11
KW9.0
DimensionReplacement Unit:, Gear OD: 1.602in / 40.7mm, Mtg. Ear Holes: 11mm Unthreaded,
Starter TypeDD
FitsAtlas, Khd
Used on: Atlas Excavators: KHD Trucks: Various KHD Equipment 1970-88: Various Deutz Marine Models 1970-88:

Please verify this is the right part number you need before ordering.
If you have questions, please email sales@totalpowerparts.com for fast friendly service.

Replaces these part numbers:
ARROWHEADSBO0306
ARROWHEAD (OEM)MS73
ARROWHEAD (OEM) (OLD)IS1210
BOSCH0-001-510-014, 0-001-510-017
DEUTZ01163556, 01183039
J & N410-24088
KHD0116-3556, 116-2509, 116-3556, 116-4274
LESTER17107
LETRIKA (ISKRA) AFTERMARKETIS 1210
LETRIKA (ISKRA) DESCRIPTIONAZG4654, AZG4681, AZG4815
LETRIKA (ISKRA) OEM11.131.587, 11.131.872, 11.132.022
MAHLEMS73

Total Power Parts Marine Starters
Total Power Parts keeps watercrafts moving forward on the lakes, rivers and coastlines. We work directly with factories to ensure each component is manufactured to our exacting quality control standards. But because there is no middleman, we can offer these exceptional-quality electrical components at low factory direct prices.

Marine Starters that Exceed OEM Quality
The stationary gear of many OEM marine grade starters is made of a composite material that is prone to premature wear and corrosion. These starters from Total Power Parts improve upon the original design. With our starters, a high-quality metal gear is embedded into the composite material for added stability and performance. The advantage is a more durable and longer lasting starter that keeps you enjoying more days out on the water.

With Total Power Parts starters, you’ll get …

  • Superior Quality Every Time – Our aftermarket starters deliver high performance
  • Direct-Fit OEM Replacement Parts – Total Power Parts aftermarket starters are designed for perfect fitment to replace the ones that originally came with your marine engine
  • Engineer-Tested Excellence – Our starters go through a rigorous testing program to ensure optimal performance

Reasons to choose Total Power Parts for your next starter:

  • Fast engine starts – High quality magnets or field coils deliver more torque for fast and efficient engine starts
  • Seals out residue – Sealed housings and bearings keep the internal workings cleaner and drier
  • Resistant properties – Carefully engineered to combat the corrosive effects of water – epoxied armatures, top quality bearings and magnets, and sealed solenoids
  • Brand new starter – Never settle for a secondhand refurbished one

The Total Power Parts Advantage – 1-Year Warranty
Total Power Parts delivers exceptional value for products that we stand behind with our total-confidence 1-year warranty. Yes, you have a full year to make sure your starter meets your expectations.


Warranty
All of our products are covered by our one year warranty from date of purchase. If you have a problem, we will take every step to assist you.
