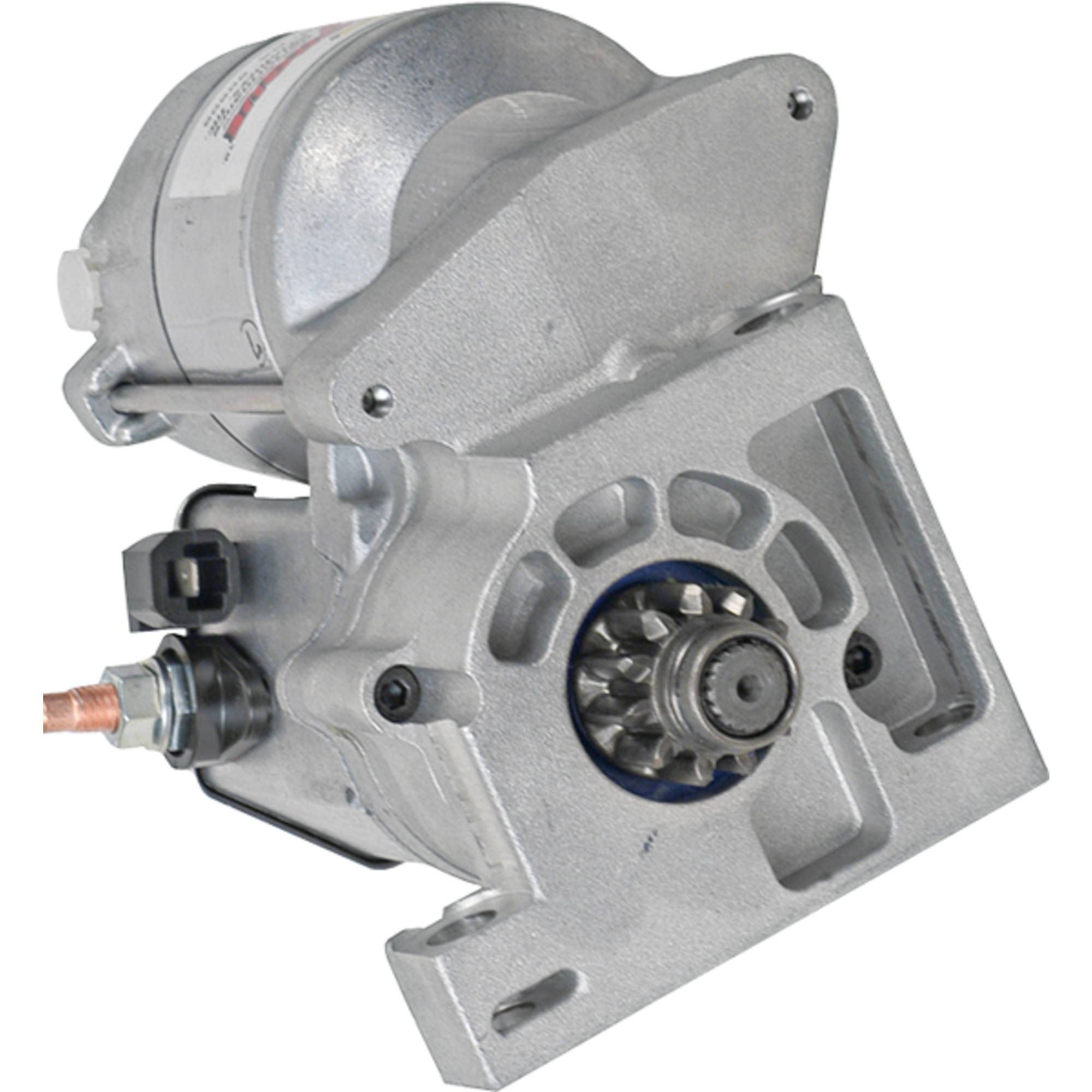

Starter For Chevrolet Commercial Chassis, Caprice Classic Tractors IMI-IMI211

Description

New Aftermarket Part From Total Power Parts

Applications:

MAKE	TYPE	MODEL	YEAR	ENGINE
Buick		Commercial Chassis	1991	5000cc, 5.0L/305CI V8
Buick		ROADMASTER	1991	5.0L(305) V
Buick		Roadmaster	1991	5000cc, 5.0L/305CI V8
Cadillac		BROUGHAM	1991	5.0L(305) V
Cadillac		BROUGHAM	1992	5.0L(305) V
Cadillac		Brougham	1991	5000cc, 5.0L/305CI V8
Cadillac		Brougham	1992	5000cc, 5.0L/305CI V8
Cadillac		Fleetwood	1991	5000cc, 5.0L/307CI V8
Cadillac		Fleetwood	1992	5000cc, 5.0L/307CI V8
Chevrolet		CAMARO	1985	5.0L(305) V
Chevrolet		CAMARO	1986	5.0L(305) V
Chevrolet		CAMARO	1987	5.0L(305) V
Chevrolet		CAMARO	1988	5.0L(305) V
Chevrolet		CAMARO	1989	5.0L(305) V
Chevrolet		CAMARO	1990	5.0L(305) V
Chevrolet		CAMARO	1991	5.0L(305) V
Chevrolet		CAMARO	1992	5.0L(305) V
Chevrolet		Camaro	1991	5000cc, 5.0L/305CI V8
Chevrolet		Camaro	1992	5000cc, 5.0L/305CI V8
Chevrolet		CAPRICE	1992	4.3L(262) V
Chevrolet		CAPRICE	1993	4.3L(262) V
Chevrolet		CAPRICE	1994	4.3L(265) V
Chevrolet		CAPRICE	1995	4.3L(265) V
Chevrolet		CAPRICE	1991	5.0L(305) V
Chevrolet		CAPRICE	1992	5.0L(305) V
Chevrolet		CAPRICE	1993	5.0L(305) V
Chevrolet		Caprice	1992	4300cc, 4.3L/262CI V6
Chevrolet		Caprice	1993	4300cc, 4.3L/262CI V6
Chevrolet		Caprice	1994	4300cc, 4.3L/265CI V8
Chevrolet		Caprice	1995	4300cc, 4.3L/265CI V8
Chevrolet		Caprice	1991	5000cc, 5.0L/305CI V8
Chevrolet		Caprice	1992	5000cc, 5.0L/305CI V8
Chevrolet		Caprice	1993	5000cc, 5.0L/305CI V8
Chevrolet		Caprice Classic	1993	4300cc, 4.3L/262CI V6
Chevrolet		Caprice Classic	1994	4300cc, 4.3L/265CI V8
Chevrolet		Caprice Classic	1993	5000cc, 5.0L/305CI V8
Chevrolet		Caprice Classic LS	1994	4300cc, 4.3L/265CI V8
Chevrolet		Caprice Classic LS	1993	5000cc, 5.0L/305CI V8
Chevrolet		Commercial Chassis	1992	4300cc, 4.3L/262CI V6
Chevrolet		Commercial Chassis	1992	5000cc, 5.0L/305CI V8
Hyster		H100XL	1990	GM 3.0L Engine
Hyster		H100XL	1991	GM 3.0L Engine
Hyster		H100XL	1992	GM 3.0L Engine
Hyster		H100XL	1993	GM 3.0L Engine
Hyster		H100XL	1994	GM 3.0L Engine
Hyster		H100XL	1995	GM 3.0L Engine
Hyster		H100XL	1996	GM 3.0L Engine
Hyster		H100XL	1997	GM 3.0L Engine
Hyster		H100XL	1990	3000cc, 3L
Hyster		H100XL	1991	3000cc, 3L
Hyster		H100XL	1992	3000cc, 3L
Hyster		H100XL	1993	3000cc, 3L
Hyster		H100XL	1994	3000cc, 3L
Hyster		H100XL	1995	3000cc, 3L
Hyster		H100XL	1996	3000cc, 3L
Hyster		H100XL	1997	3000cc, 3L
Hyster		H110XL	1990	GM 3.0L Engine
Hyster		H110XL	1991	GM 3.0L Engine
Hyster		H110XL	1992	GM 3.0L Engine
Hyster		H110XL	1993	GM 3.0L Engine
Hyster		H110XL	1994	GM 3.0L Engine
Hyster		H110XL	1995	GM 3.0L Engine
Hyster		H110XL	1996	GM 3.0L Engine
Hyster		H110XL	1997	GM 3.0L Engine
Hyster		H110XL	1990	3000cc, 3L
Hyster		H110XL	1991	3000cc, 3L
Hyster		H110XL	1992	3000cc, 3L
Hyster		H110XL	1993	3000cc, 3L
Hyster		H110XL	1994	3000cc, 3L
Hyster		H110XL	1995	3000cc, 3L
Hyster		H110XL	1996	3000cc, 3L
Hyster		H110XL	1997	3000cc, 3L
Hyster		H130XL	1990	GM 3.0L Engine
Hyster		H130XL	1991	GM 3.0L Engine
Hyster		H130XL	1992	GM 3.0L Engine
Hyster		H130XL	1993	GM 3.0L Engine
Hyster		H130XL	1994	GM 3.0L Engine
Hyster		H130XL	1995	GM 3.0L Engine
Hyster		H130XL	1996	GM 3.0L Engine
Hyster		H130XL	1997	GM 3.0L Engine
Hyster		H130XL	1990	3000cc, 3L
Hyster		H130XL	1991	3000cc, 3L
Hyster		H130XL	1992	3000cc, 3L
Hyster		H130XL	1993	3000cc, 3L
Hyster		H130XL	1994	3000cc, 3L
Hyster		H130XL	1995	3000cc, 3L
Hyster		H130XL	1996	3000cc, 3L
Hyster		H130XL	1997	3000cc, 3L
Hyster		H-40XL	1990	GM 3.0L Engine
Hyster		H-40XL	1991	GM 3.0L Engine
Hyster		H-40XL	1992	GM 3.0L Engine
Hyster		H-40XL	1993	GM 3.0L Engine
Hyster		H-40XL	1994	GM 3.0L Engine
Hyster		H-40XL	1995	GM 3.0L Engine
Hyster		H-40XL	1996	GM 3.0L Engine
Hyster		H-40XL	1997	GM 3.0L Engine
Hyster		H-40XL	1990	3000cc, 3L
Hyster		H-40XL	1991	3000cc, 3L
Hyster		H-40XL	1992	3000cc, 3L
Hyster		H-40XL	1993	3000cc, 3L
Hyster		H-40XL	1994	3000cc, 3L
Hyster		H-40XL	1995	3000cc, 3L
Hyster		H-40XL	1996	3000cc, 3L
Hyster		H-40XL	1997	3000cc, 3L
Hyster		H-50XL	1990	GM 3.0L Engine
Hyster		H-50XL	1991	GM 3.0L Engine
Hyster		H-50XL	1992	GM 3.0L Engine
Hyster		H-50XL	1993	GM 3.0L Engine
Hyster		H-50XL	1994	GM 3.0L Engine
Hyster		H-50XL	1995	GM 3.0L Engine
Hyster		H-50XL	1996	GM 3.0L Engine
Hyster		H-50XL	1997	GM 3.0L Engine
Hyster		H-50XL	1990	3000cc, 3L
Hyster		H-50XL	1991	3000cc, 3L
Hyster		H-50XL	1992	3000cc, 3L
Hyster		H-50XL	1993	3000cc, 3L
Hyster		H-50XL	1994	3000cc, 3L
Hyster		H-50XL	1995	3000cc, 3L
Hyster		H-50XL	1996	3000cc, 3L
Hyster		H-50XL	1997	3000cc, 3L
Hyster		H-60XL	1990	GM 3.0L Engine
Hyster		H-60XL	1991	GM 3.0L Engine
Hyster		H-60XL	1992	GM 3.0L Engine
Hyster		H-60XL	1993	GM 3.0L Engine
Hyster		H-60XL	1994	GM 3.0L Engine
Hyster		H-60XL	1995	GM 3.0L Engine
Hyster		H-60XL	1996	GM 3.0L Engine
Hyster		H-60XL	1997	GM 3.0L Engine
Hyster		H-60XL	1990	3000cc, 3L
Hyster		H-60XL	1991	3000cc, 3L
Hyster		H-60XL	1992	3000cc, 3L
Hyster		H-60XL	1993	3000cc, 3L
Hyster		H-60XL	1994	3000cc, 3L
Hyster		H-60XL	1995	3000cc, 3L
Hyster		H-60XL	1996	3000cc, 3L
Hyster		H-60XL	1997	3000cc, 3L
Hyster		S-40XL	1990	GM 3.0L Engine
Hyster		S-40XL	1991	GM 3.0L Engine
Hyster		S-40XL	1992	GM 3.0L Engine
Hyster		S-40XL	1993	GM 3.0L Engine
Hyster		S-40XL	1994	GM 3.0L Engine
Hyster		S-40XL	1995	GM 3.0L Engine
Hyster		S-40XL	1996	GM 3.0L Engine
Hyster		S-40XL	1997	GM 3.0L Engine
Hyster		S-40XL	1990	3000cc, 3L
Hyster		S-40XL	1991	3000cc, 3L
Hyster		S-40XL	1992	3000cc, 3L
Hyster		S-40XL	1993	3000cc, 3L
Hyster		S-40XL	1994	3000cc, 3L
Hyster		S-40XL	1995	3000cc, 3L
Hyster		S-40XL	1996	3000cc, 3L
Hyster		S-40XL	1997	3000cc, 3L
Oldsmobile		CUSTOM CRUISER	1991	5.0L(305) V
Oldsmobile		CUSTOM CRUISER	1992	5.0L(305) V
Oldsmobile		Custom Cruiser	1991	5000cc, 5.0L/305CI V8
Oldsmobile		Custom Cruiser	1992	5000cc, 5.0L/305CI V8
Pontiac		FIREBIRD	1985	5.0L(305) V
Pontiac		FIREBIRD	1986	5.0L(305) V
Pontiac		FIREBIRD	1987	5.0L(305) V
Pontiac		FIREBIRD	1988	5.0L(305) V
Pontiac		FIREBIRD	1989	5.0L(305) V
Pontiac		FIREBIRD	1990	5.0L(305) V
Pontiac		FIREBIRD	1991	5.0L(305) V
Pontiac		FIREBIRD	1992	5.0L(305) V
Pontiac		Firebird	1991	5000cc, 5.0L/305CI V8
Pontiac		Firebird	1992	5000cc, 5.0L/305CI V8

Specifications:
Description	Starter
Volt	12
Power	1.200 kw
HP	1.609
Rotation Direction	Clockwise
Electric Starter Type	Offset Gear Reduction (OSGR)
Number Of Teeth	11
Gear OD	1.142"/29mm
Mount Hole ID 1	10mm
Mount Hole 1 Type	Unthreaded
Mount Hole 2 Type	Unthreaded

Please verify this is the right part number you need before ordering.
If you have questions, please email sales@totalpowerparts.com for fast friendly service.

Replaces these part numbers:
AC Delco Tools	323-1205, 323-473, 336-1904
Arrowhead	IMI211, SDR0024
Bosch	SR8532X
Delco	10455012, 10455076, 10465097, 10465435, 19136213, 323-1205, 323-473
Denso	280-5157
Hyster	3141190R
IMI Hi Torque	IMI211
J&N Electrical Products	410-12361
Lester	6418
Lucas Electric	LRS01782

Warranty
All of our products are covered by our one year warranty from date of purchase. If you have a problem, we will take every step to assist you.
