New Aftermarket Part From Total Power Parts |
Applications: |
MAKE |
TYPE |
MODEL |
YEAR |
ENGINE |
HONDA | Motorcycles | CB400A | 1978 | 395cc | HONDA | Motorcycles | CB400T Hawk | 1980 | 395cc | HONDA | Motorcycles | CB400T Hawk | 1981 | 395cc | HONDA | Motorcycles | CB400T Hawk I | 1978 | 395cc | HONDA | Motorcycles | CB400T Hawk I | 1979 | 395cc | HONDA | Motorcycles | CB400T Hawk II | 1978 | 395cc | HONDA | Motorcycles | CB400T Hawk II | 1979 | 395cc | HONDA | Motorcycles | CB450SC Nighthawk | 1982 | 447cc | HONDA | Motorcycles | CB450SC Nighthawk | 1983 | 447cc | HONDA | Motorcycles | CB450SC Nighthawk | 1984 | 447cc | HONDA | Motorcycles | CB450SC Nighthawk | 1985 | 447cc | HONDA | Motorcycles | CB450SC Nighthawk | 1986 | 447cc | HONDA | Motorcycles | CB450T Hawk | 1982 | 447cc | HONDA | Motorcycles | CM200T Twinstar | 1981 | 194cc | HONDA | Motorcycles | CM200T Twinstar | 1982 | 194cc | HONDA | Motorcycles | CM400A | 1979 | 395cc | HONDA | Motorcycles | CM400A | 1980 | 395cc | HONDA | Motorcycles | CM400A | 1981 | 395cc | HONDA | Motorcycles | CM400C Custom | 1981 | 395cc | HONDA | Motorcycles | CM400E | 1980 | 395cc | HONDA | Motorcycles | CM400E | 1981 | 395cc | HONDA | Motorcycles | CM400T | 1979 | 395cc | HONDA | Motorcycles | CM400T | 1980 | 395cc | HONDA | Motorcycles | CM400T | 1981 | 395cc | HONDA | Motorcycles | CM450A Hondamatic | 1982 | 447cc | HONDA | Motorcycles | CM450A Hondamatic | 1983 | 447cc | HONDA | Motorcycles | CM450C Custom | 1982 | 447cc | HONDA | Motorcycles | CM450E | 1982 | 447cc | HONDA | Motorcycles | CM450E | 1983 | 447cc | HONDA | Motorcycles | CMX450C Rebel | 1986 | 447cc | HONDA | Motorcycles | CMX450C Rebel | 1987 | 447cc | HONDA | Motorcycles | FT500 Ascot | 1982 | 497cc | HONDA | Motorcycles | FT500 Ascot | 1983 | 497cc | HONDA | Motorcycles | GB500 Tourist Trophy | 1989 | 498cc | HONDA | Motorcycles | GB500 Tourist Trophy | 1990 | 498cc | HONDA | Scooters | CH125 Elite | 1984 | 124cc | HONDA | Scooters | CH150 Elite | 1987 | 153cc | HONDA | Scooters | CN250 Helix / Fusion / Spazio | 2004 | 244cc | HONDA | Scooters | CN250 Helix / Fusion / Spazio | 2005 | 244cc | HONDA | Scooters | CN250 Helix / Fusion / Spazio | 2006 | 244cc | HONDA | Scooters | CN250 Helix / Fusion / Spazio | 2007 | 244cc |
|
Specifications: |

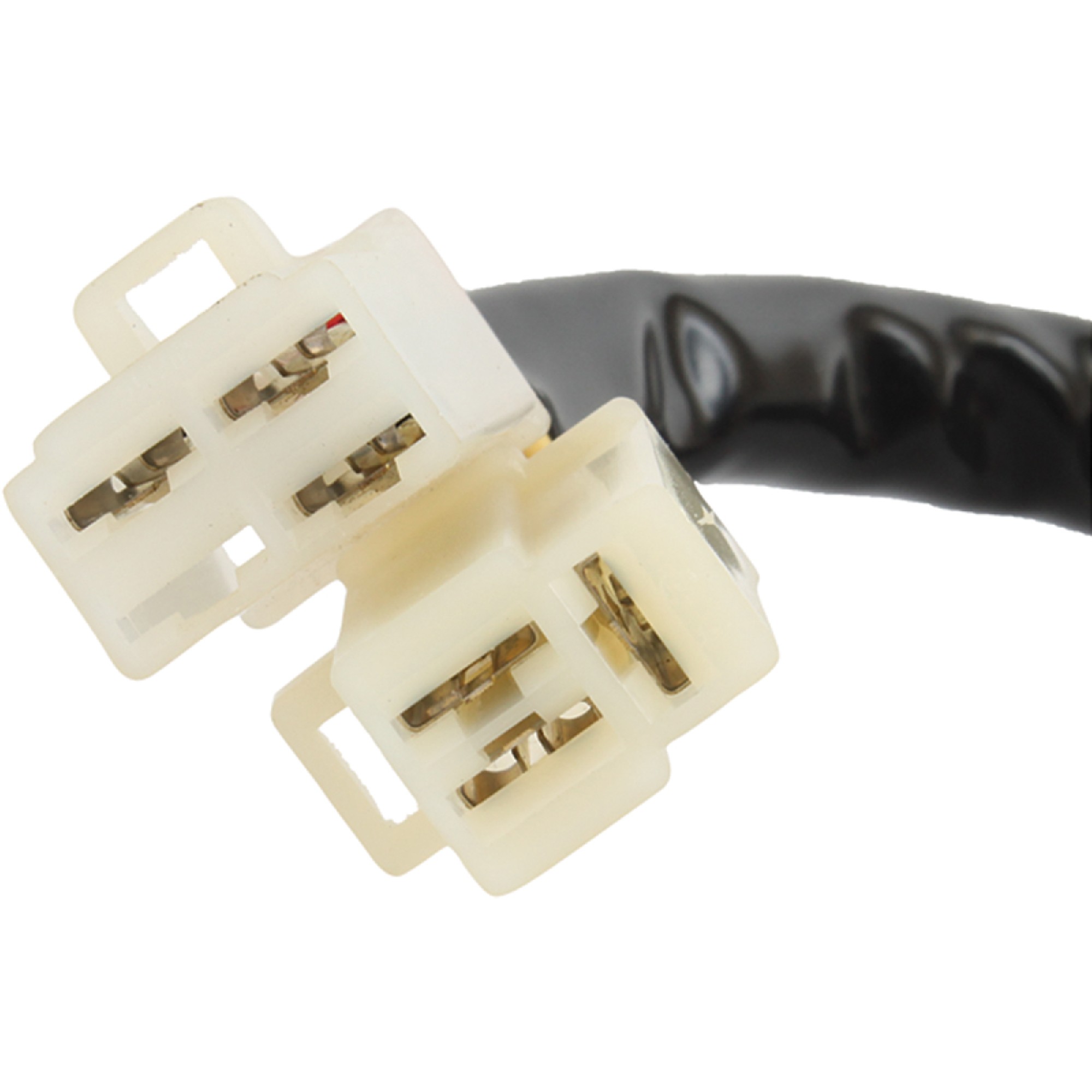

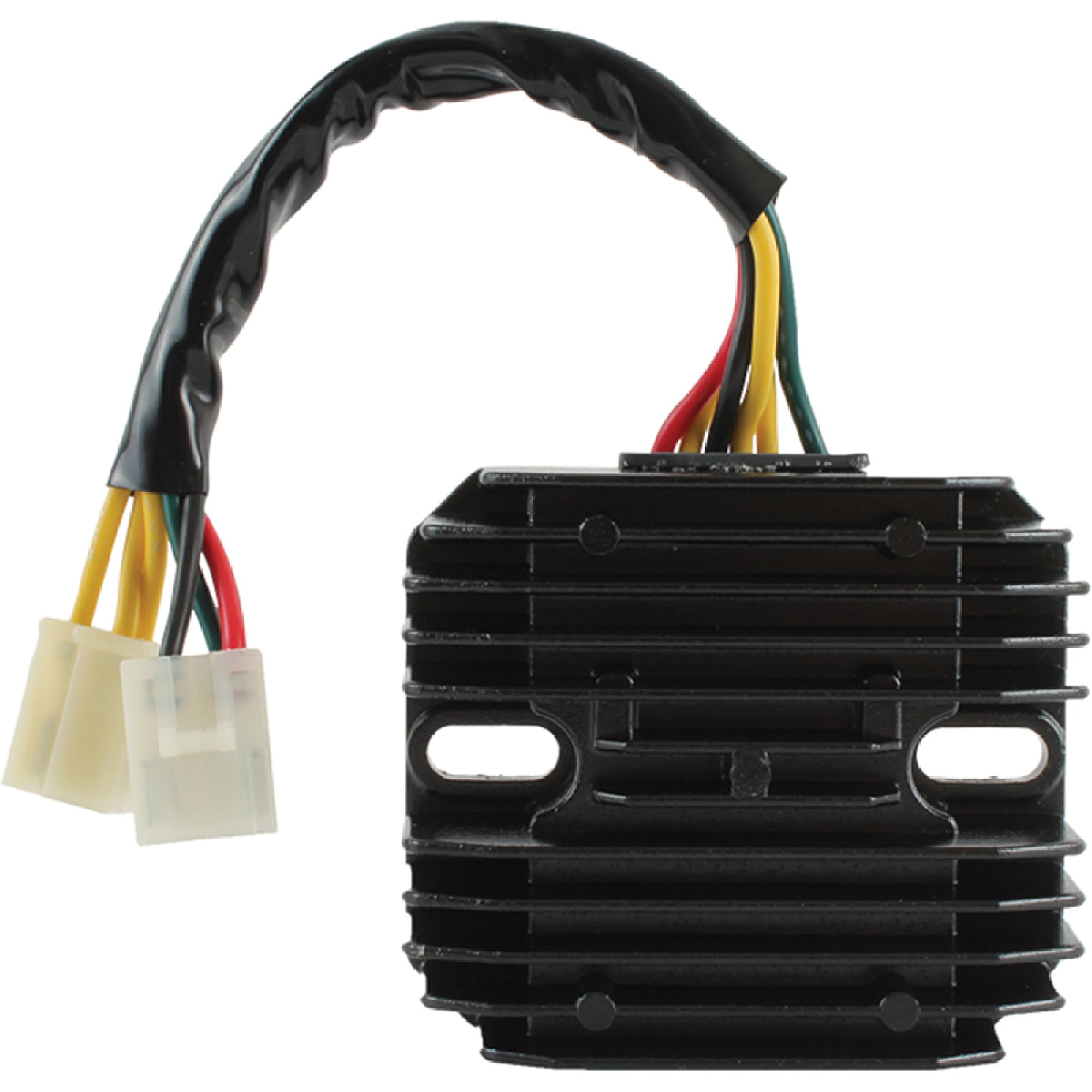

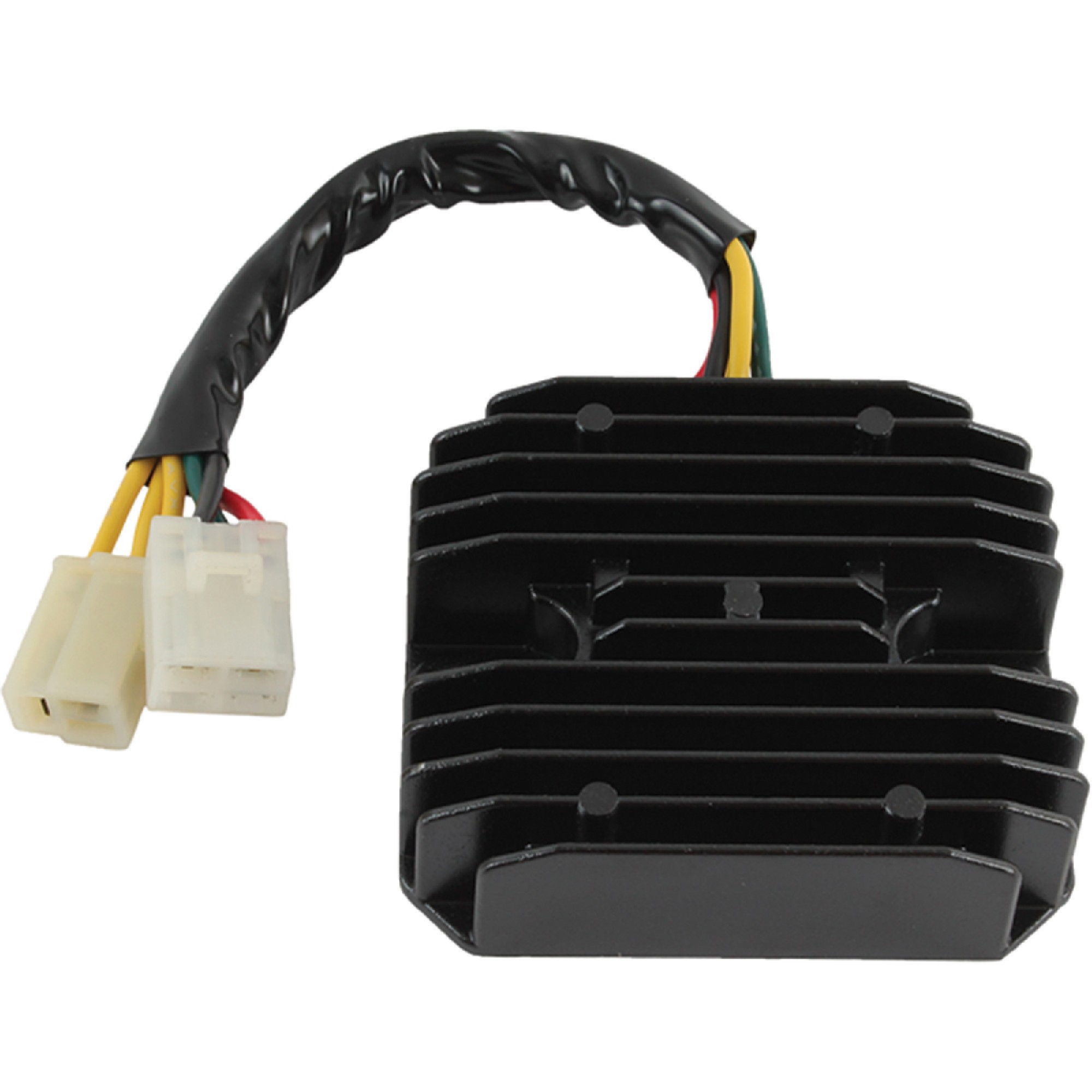

Unit Type | RECTIFIER / REGULATOR |
Voltage | 12 |
Dimension | 90mm L x 80mm W x 28mm H; Hole Distance 66.8mm; |
Fits | Honda:CB400A Hawk 395cc 1978 CB400T Hawk 395cc 1978-81 CB450SC Nighthawk 447cc 1982-86 CB450T Hawk 447cc 1982 CH150 Elite 150cc 1987 CM200T Twinstar 194cc 1981-82 CM400A 395cc 1979-81 CM400C Custom 395cc 1981 CM400E 395cc 1980-81 CM400T 395cc 1979-81 CM450A 447cc 1982-83 CM450C Custom 447cc 1982 CM450E 447cc 1982-83 FT500 Ascot 497cc 1982-83 GB500 498cc 1989-90
Also These Non-USA Models: CB250RSA 250cc 1980-81 CB250S Dream 250cc 1978-85 CB250T Dream 250cc CB400S Dream 400cc 1978-85 CB400T Dream 400cc CB400T Hawk 400cc 1980-81 CB450DX 450cc 1989-92 CB500R/S 500cc 1994-00 CS450T Hawk 450cc 1982 CX500 Custom 500cc 1982-85 GL500 Silverwing 500cc 1993-96 NS250R 250cc 1993-96 XBR500 500cc 1985-88 XL600LM 600cc 1985-87
|
Please verify this is the right part number you need before ordering. If you have questions, please email sales@totalpowerparts.com for fast friendly service. |
Replaces these part numbers: |
ARROWHEAD (OLD) | AHI6013 |
ARROWHEAD | AHA6013, 230-58073 |
HI LEVEL | 595536, 715536 |
HONDA | 31600-413-008, 31600-KC1-000, 31600-KE8-000, 31600-KFR-841, 31600-KJ9-000, 31600-KR3-980, 31600-KV8-681, 31600-MC7-000, 31600-MC9-740, 31600-ML4-000, 31600-MM2-000, 31600-MM2-405, 31600-MM2-770 |
J & N | 230-58073 |
PIC | 8099-1310 |
SHINDENGEN | SH532-12 |
TUCKER ROCKY | 463904, 46-3904 |
Total Power Parts Voltage Regulators
Total Power Parts keeps vehicles of every shape and size moving forward – from mowers, motorcycles and ATVs to automobiles, tractors, pickups and large commercial trucks. We work directly with factories to ensure each component is manufactured to our exacting quality control standards that meet genuine OEM specifications. But because there is no middleman, we can offer these exceptional-quality electrical components at low factory direct prices.
Purpose of a Voltage Regulator
A voltage regulator is a seemingly simple component, but it performs one of the most vital tasks in your vehicle’s electrical system. As the name suggests, the voltage regulator maintains a consistent and manageable output of voltage passing through the system. As the alternator or generator produces power, the voltage regulator controls the voltage capacity that goes to the battery. If too much voltage is allowed to pass, it can cause damage to the battery, wiring system and other electrical accessories.
With Total Power Parts voltage regulators, you’ll get …
- OEM Quality Every Time – Our aftermarket voltage regulators deliver performance that’s equivalent to the ones made by OEM suppliers.
- Direct-Fit OEM Replacement Parts – Total Power Parts aftermarket voltage regulators are designed for perfect fitment to replace the one that originally came with your vehicle.
- Engineer-Tested Excellence – Our voltage regulators go through a rigorous testing program to ensure optimal performance.
Reasons to choose Total Power Parts for your next voltage regulator:
- Premium materials – Higher quality delivers exceptional performance.
- Long-term reliability –Long service life to keep your vehicle’s electrical system running better for a longer time.
- Brand new – Never settle for a secondhand refurbished one.
The Total Power Parts Advantage – 1-Year Warranty
Total Power Parts delivers exceptional value for products that we stand behind with our total-confidence 1-year warranty. Yes, you have a full year to make sure your starter meets your expectations. |
Warranty
All of our products are covered by our one year warranty from date of purchase.
If you have a problem, we will take every step to assist you.
